Description
This is a modular air caster system with 4 neoprene air casters and a total capacity of 28.000 kg at 4 bar pressure. Minimum capacity is about 11.200 kg.

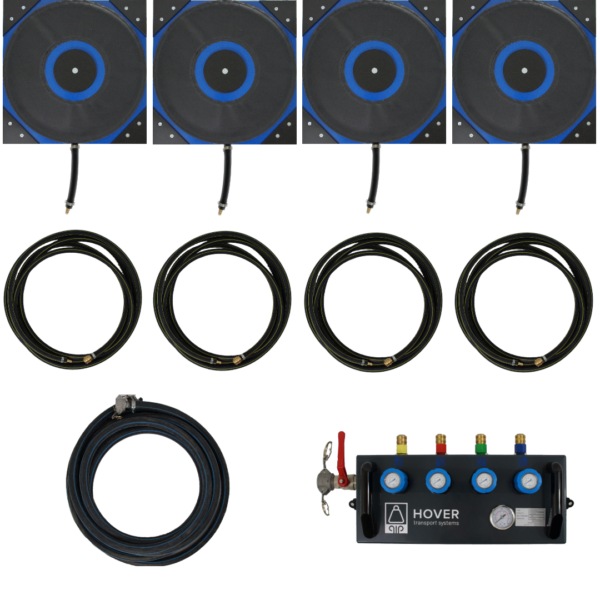

It consists of:
- 4 air casters with the dimensions 50 x 50 x 1,1cm that have a maximum capacity of 7.000 kg
- 4 power plates with the dimensions 50 x 50 x 1,5cm that provide the air supply with 1/2″ quick couplings
- 4 air caster hoses of 1/2″ with 1/2″ quick couplings in either 2×3 with 2×5 m/ 2×5 with 2x7m/ 2×7 with 2×10 m length
- 1 air supply hose of 3/4″ with 3/4″ camlock couplings and safety pins in either 10 m/ 20m/ 40m length
- 1 air control unit with 4 air regulators (with embedded manometers), an inlet 3/4″ camlock coupling and 4 outlet 1/2″ quick couplings, colour coded
- Optionally you can order a transport case to easily store and move your system
When you cannot select the specific type you need, please contact us and we can make you a proposal.
More details can be found in the specification sheet in the Downloads section.
